CAD Details
Instantly download all TRIFORCE® installation details or select your preferred details. Specify featured CAD drawings in your next design projects.
Download all
Zip File size:4 MB

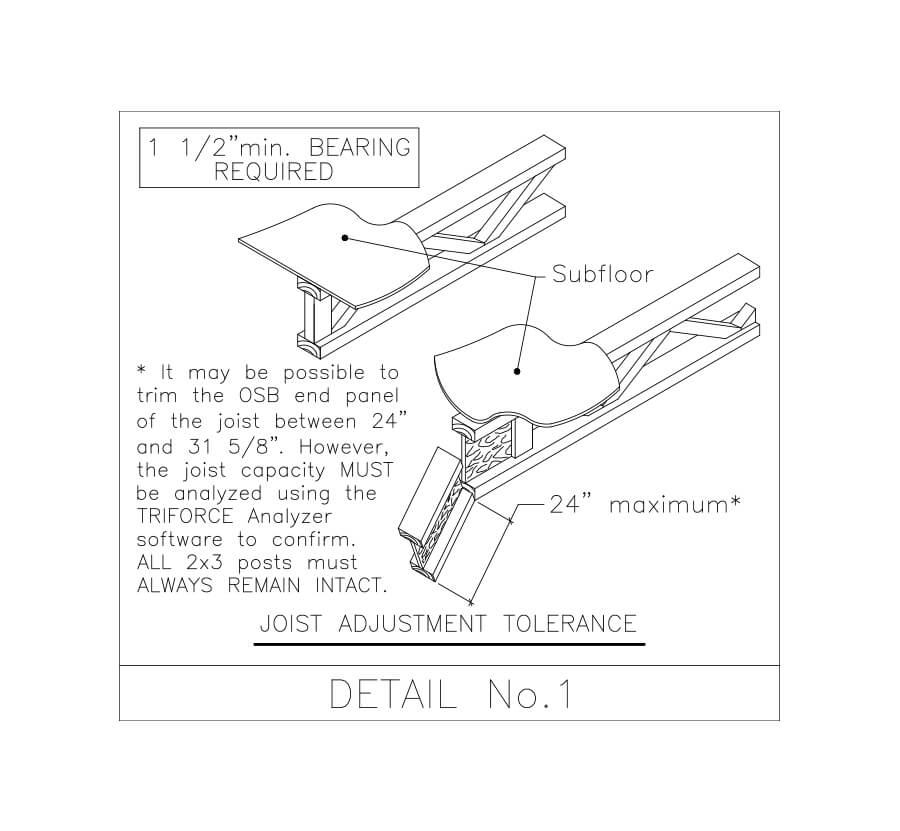

Detail No.1
– Joist Adjustment Tolerance

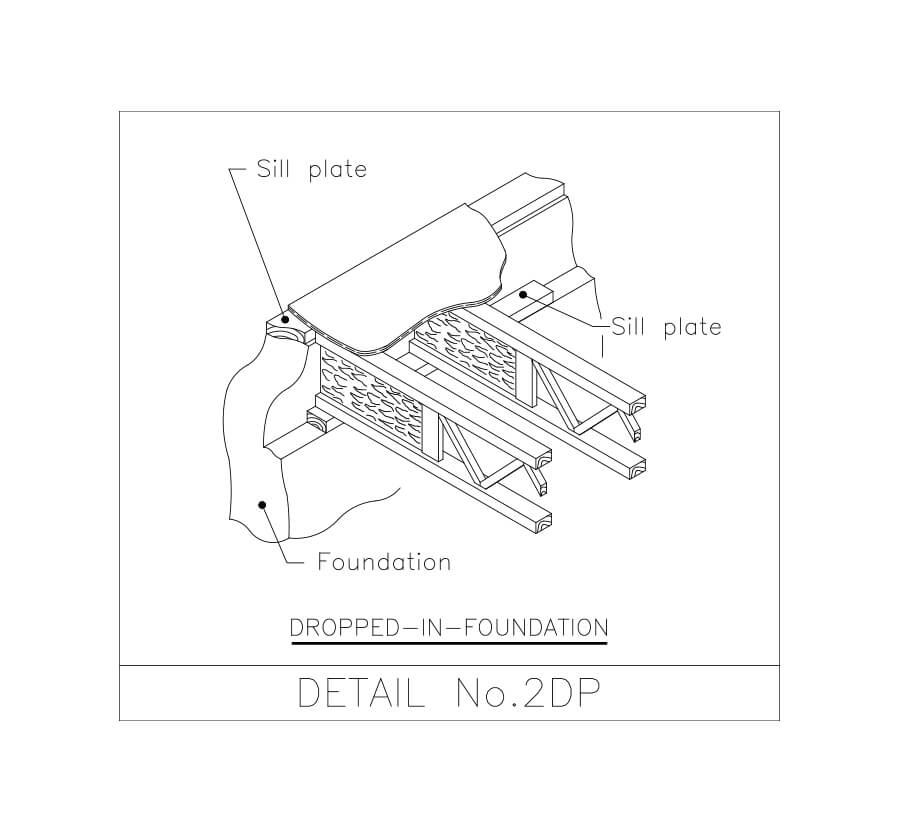

Detail No.2D
– Dropped-In-Foundation

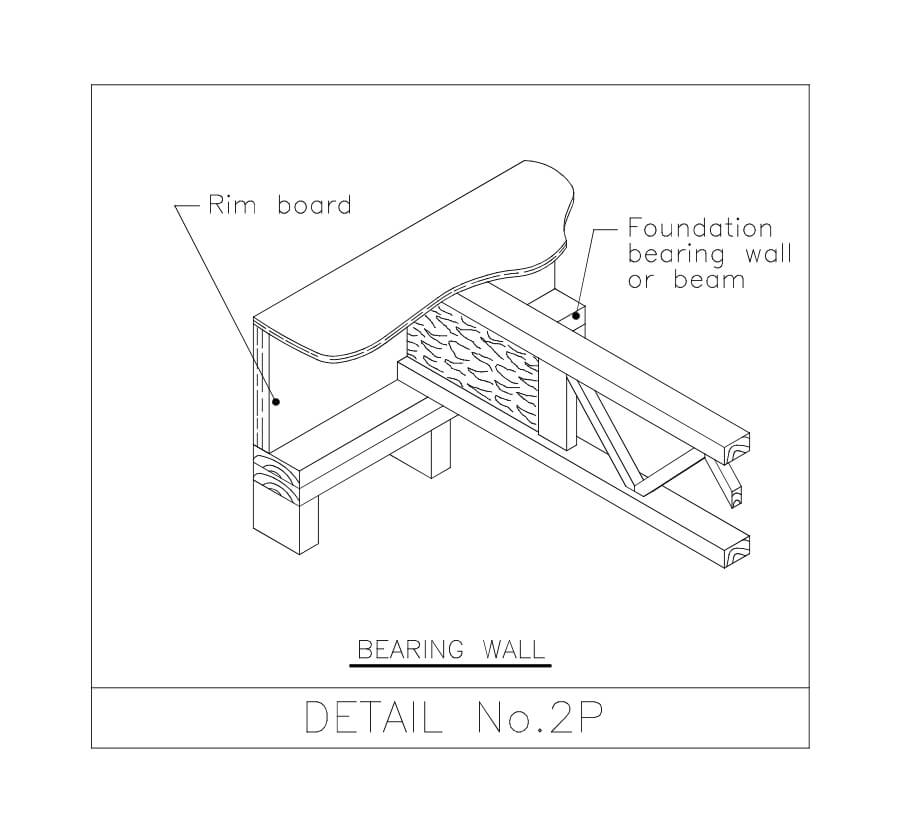

Detail No.2P
– Bearing Wall

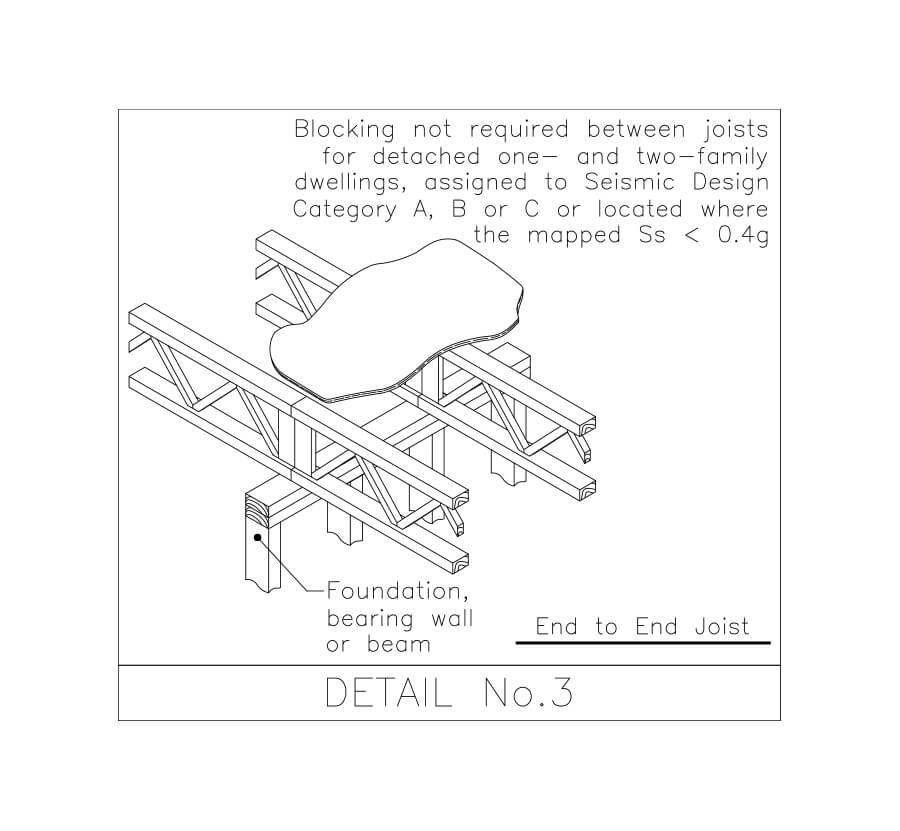

Detail No.3
– End to End Joist

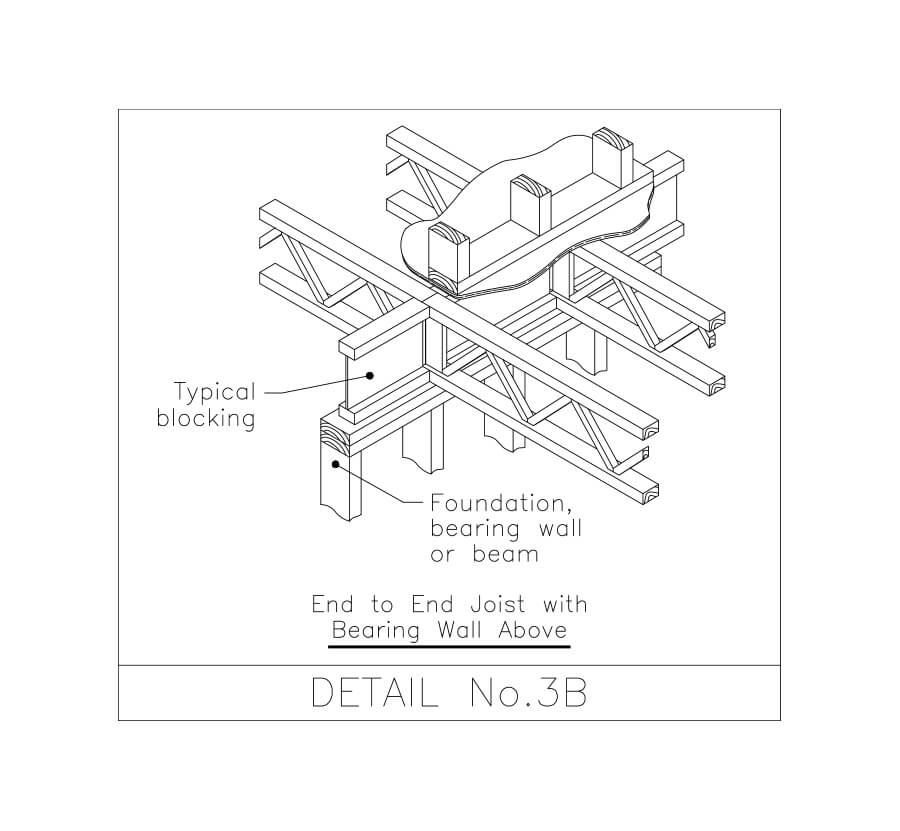

Detail No.3B
– End to End Joist with Bearing Wall Above

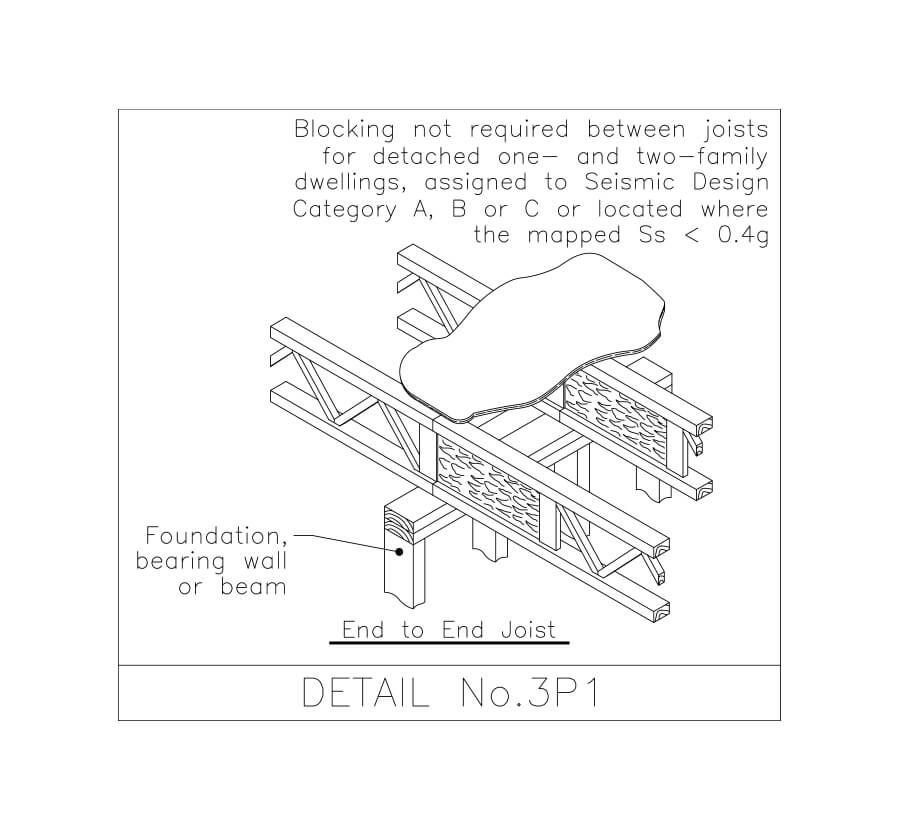

Detail No.3P1
– End to End Joist

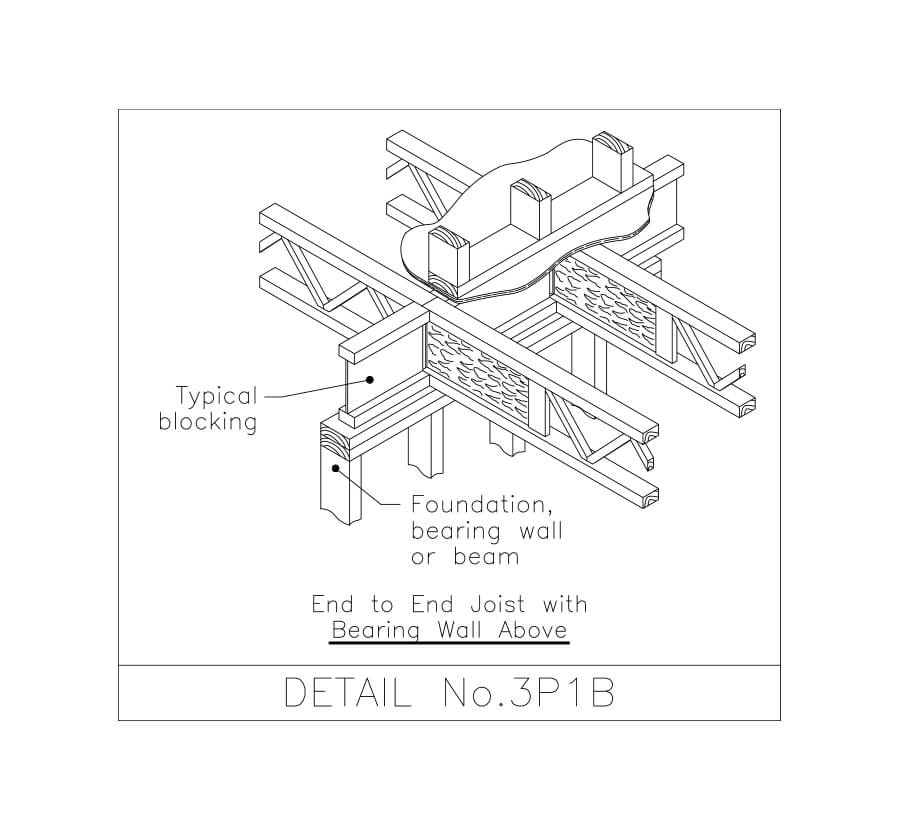

Detail No.3P1B
– End to End Joist with Bearing Wall Above

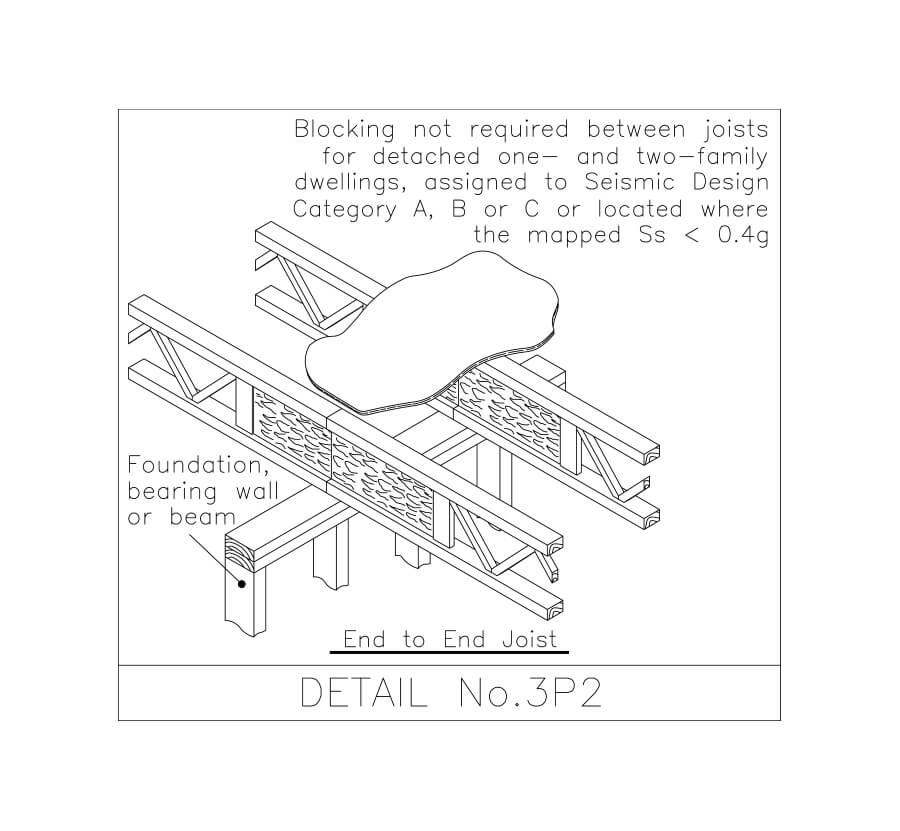

Detail No.3P2
– End to End Joist

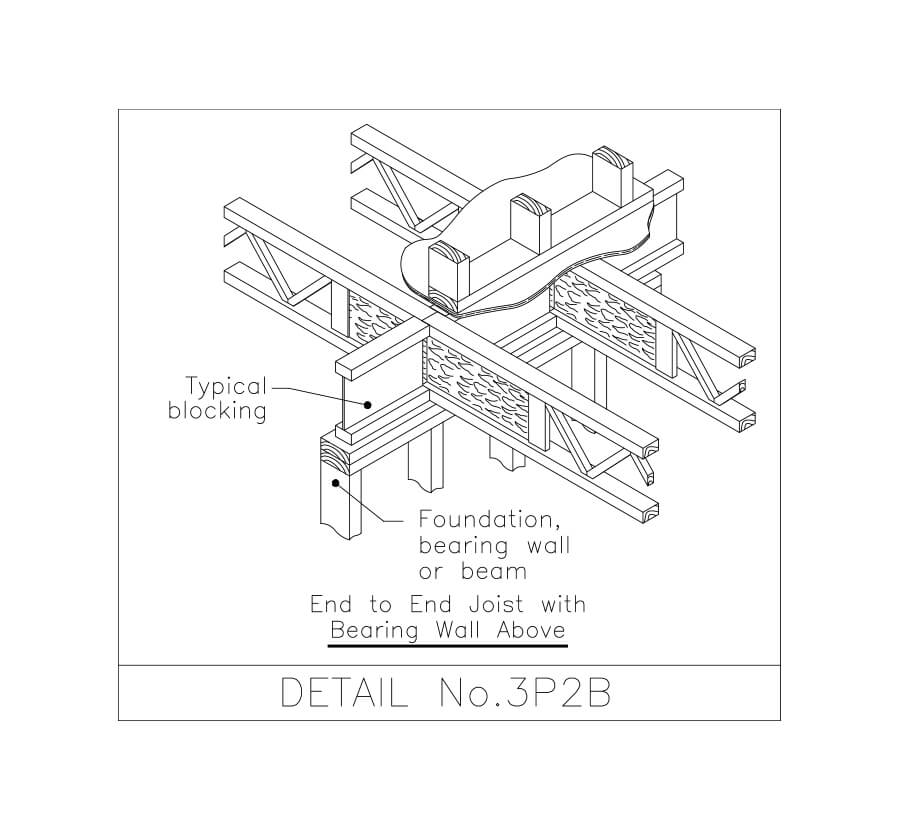

Detail No.3P2B
– End to End Joist with Bearing Wall Above

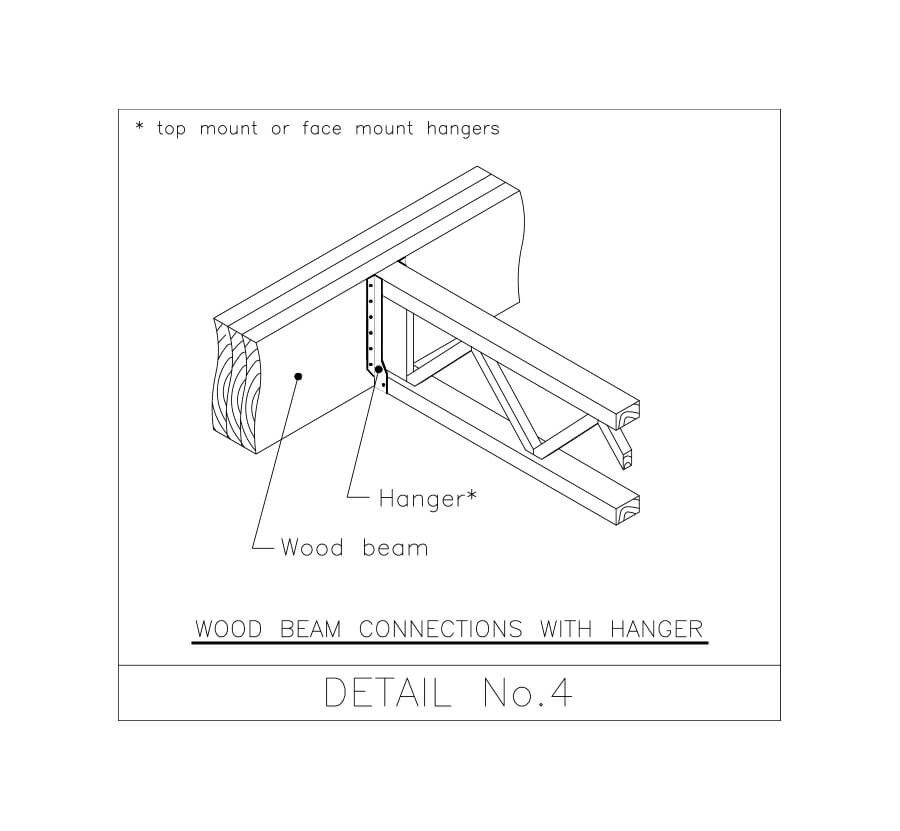

Detail No.4
– Wood Beam Connections with Hanger

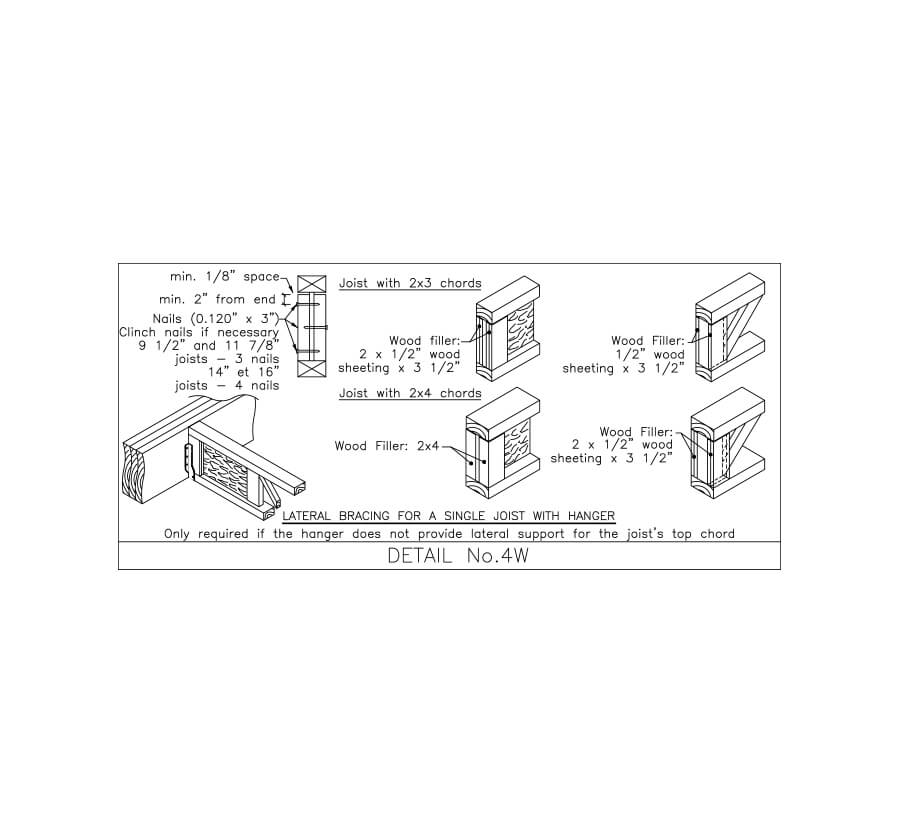

Detail No.4W
– Lateral Bracing for a Single Joist with Hanger

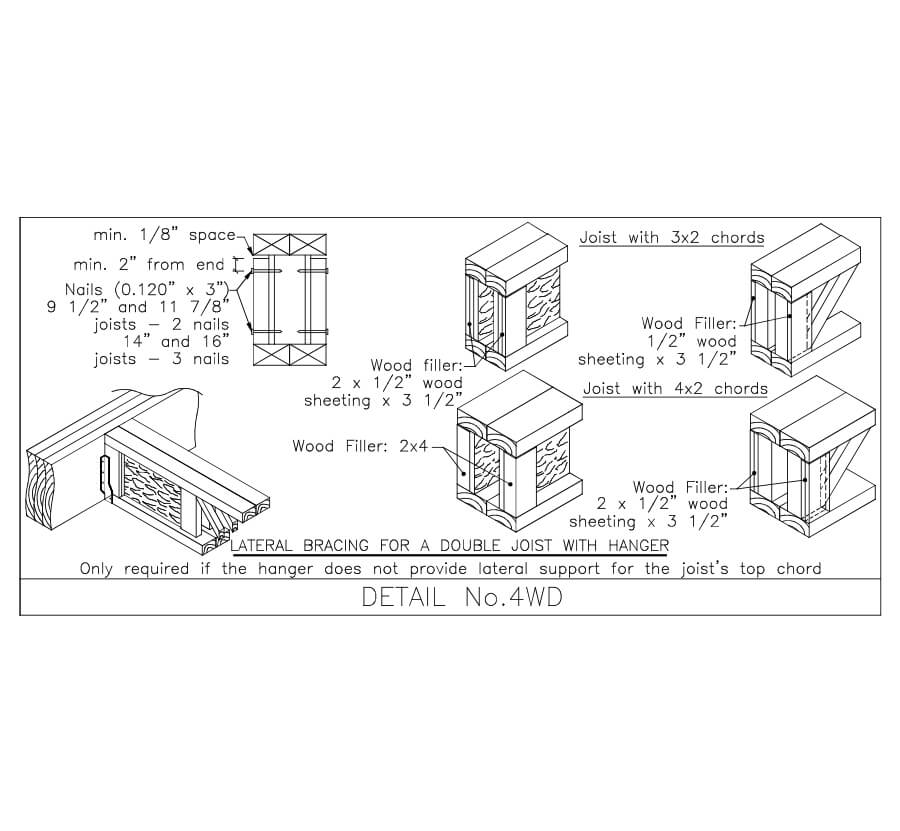

Detail No.4WD
– Lateral Bracing for a Double Joist with Hanger

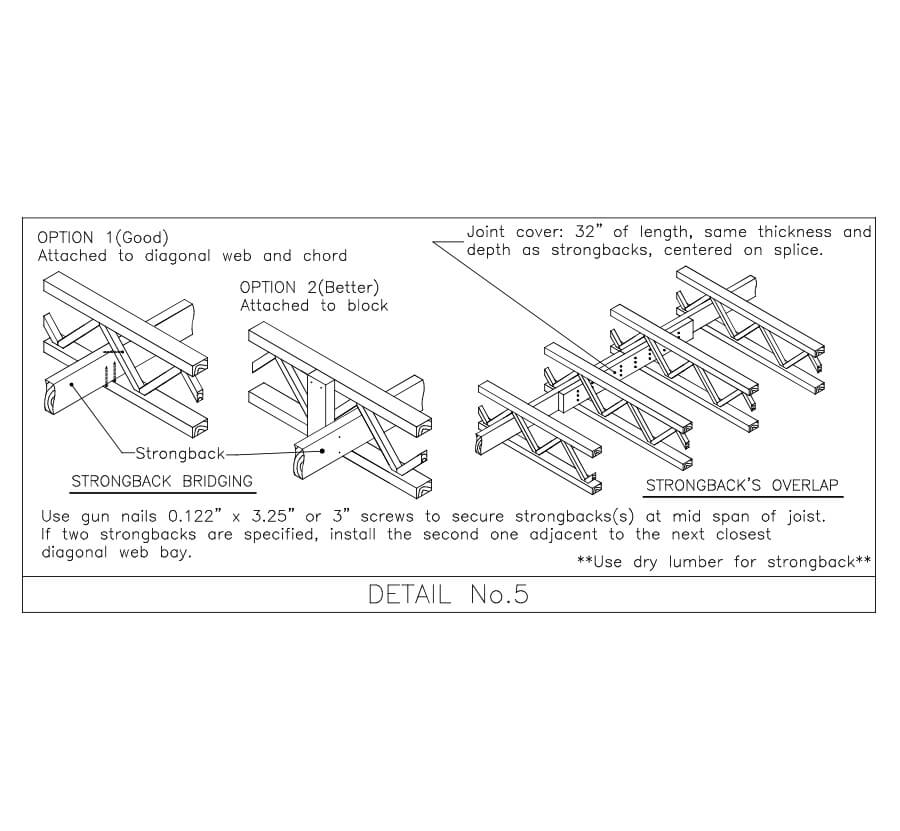

Detail No.5
– Strongback Bridging

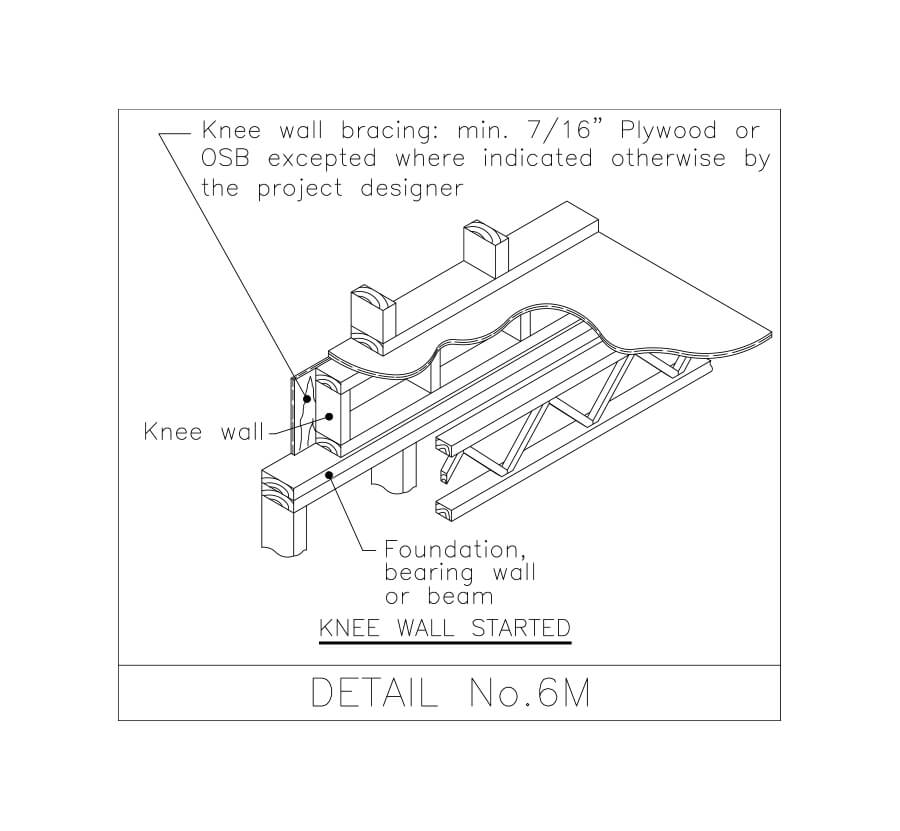

Detail No.6M
– Knee Wall Started

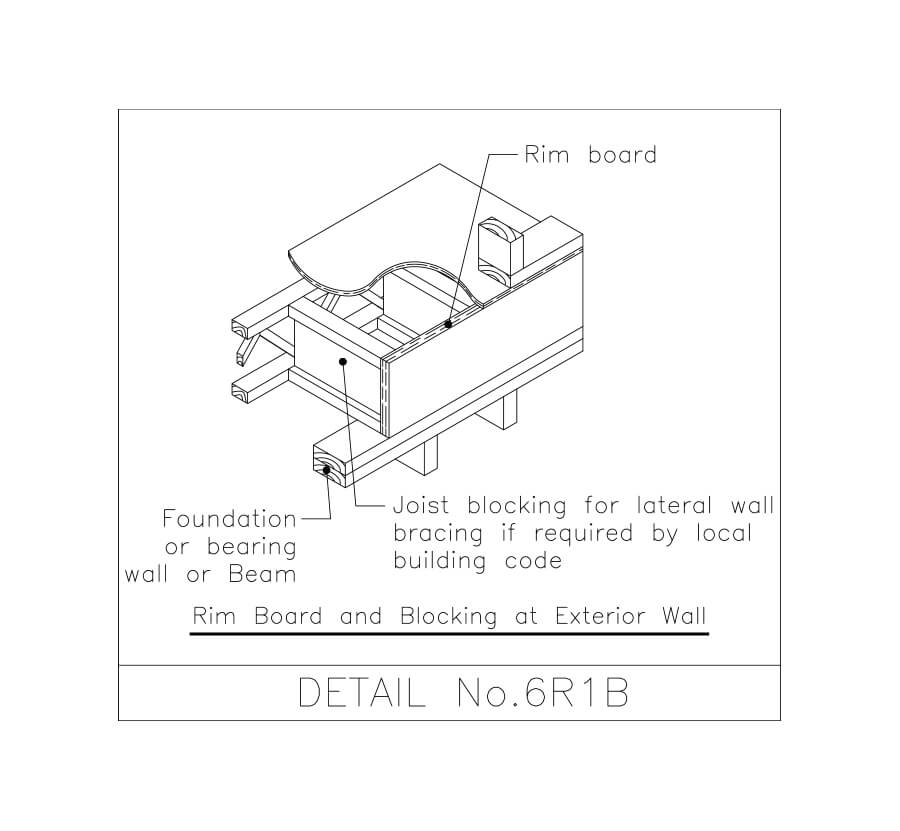

Detail No.6R1B
– Rim Board and Blocking at Exterior Wall

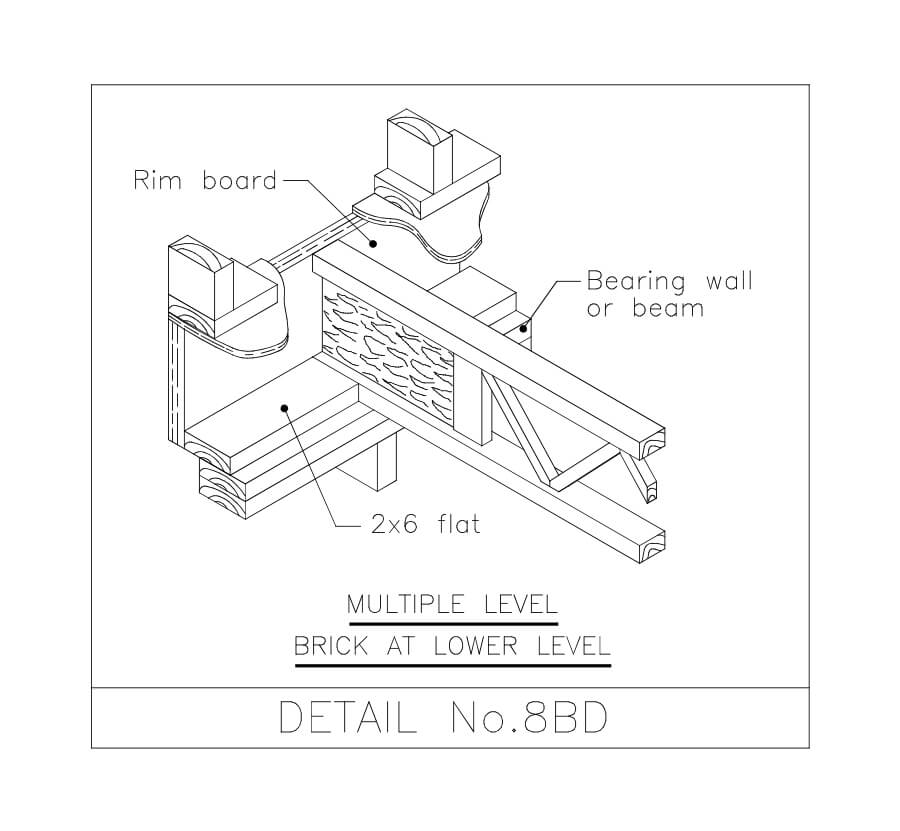

Detail No.8BD
– Multiple Level, Brick at Lower Level

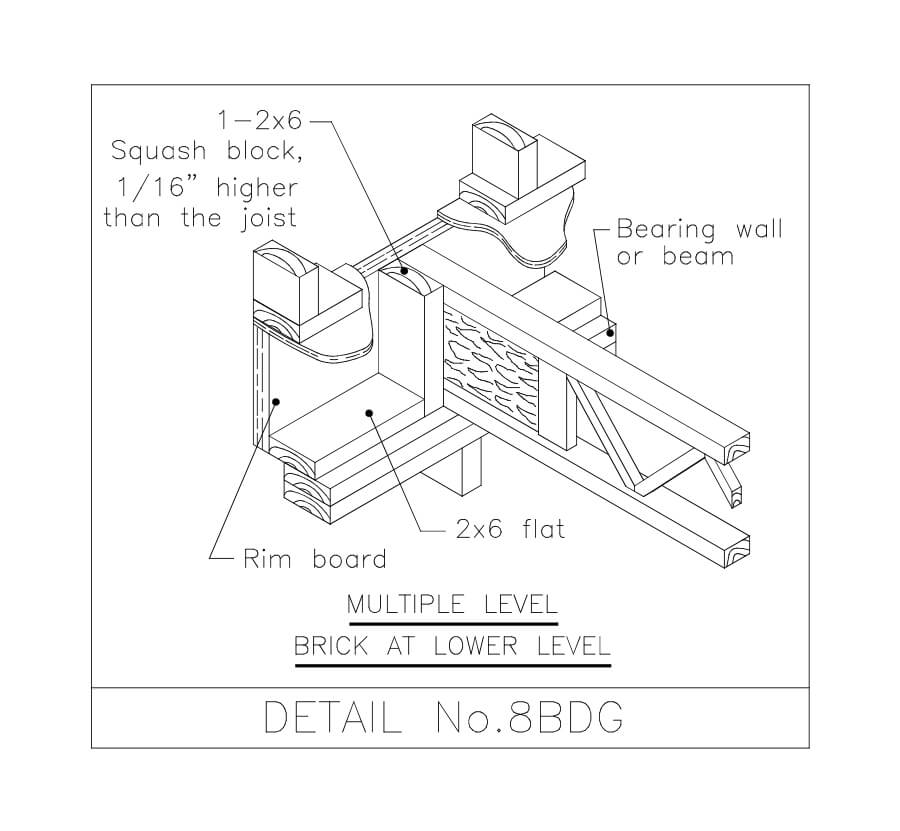

Detail No.8BDG
– Multiple Level, Brick at Lower Level

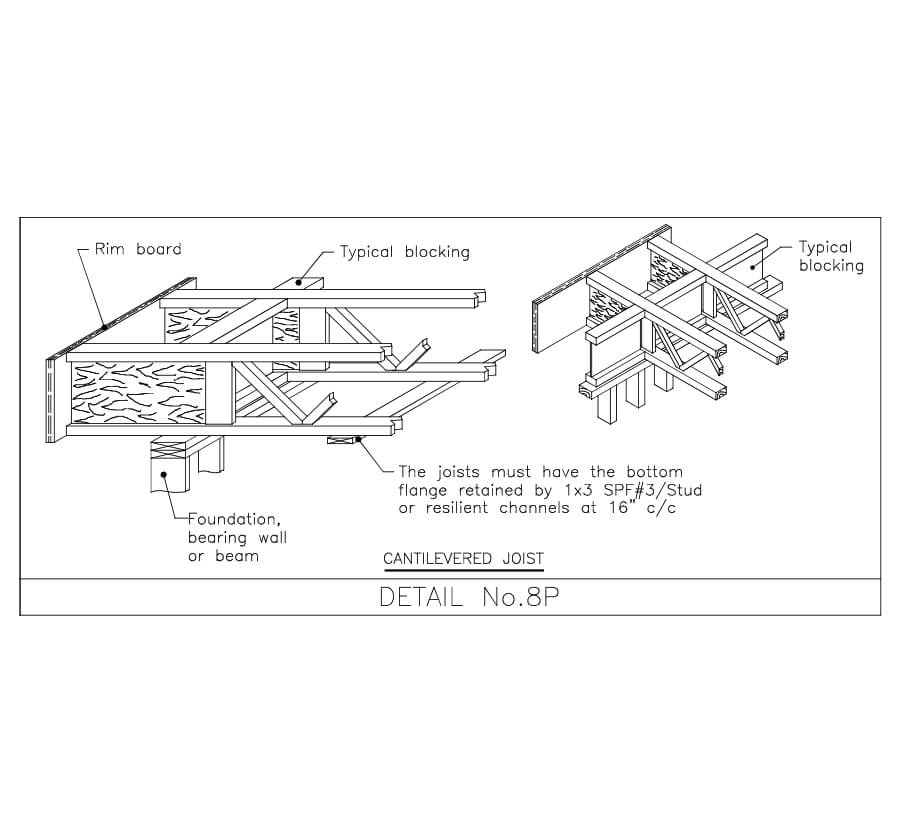

Detail No.8P
– Cantilevered Joist

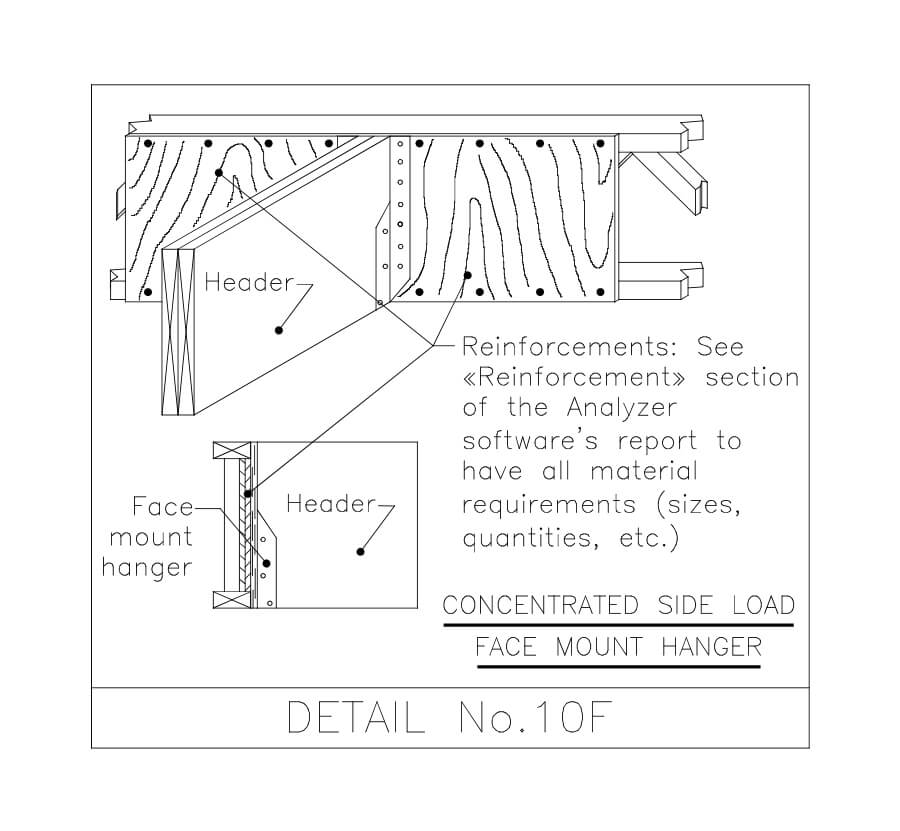

Detail No.10F
– Concentrated Side Load, Face Mount Hanger

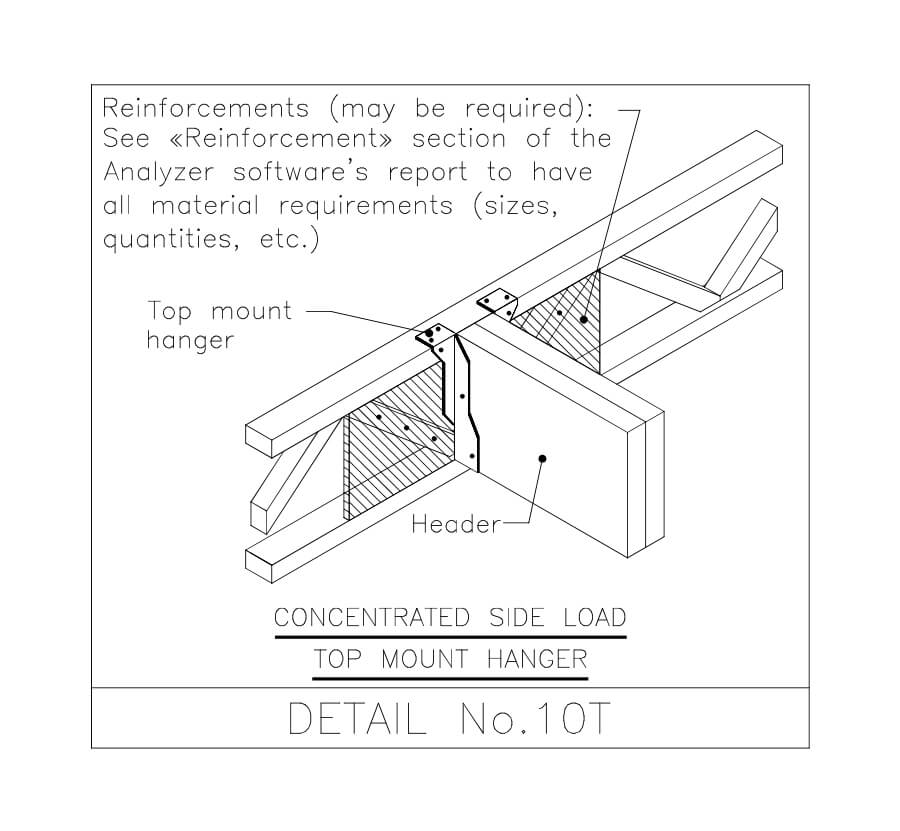

Detail No.10T
– Concentrated Side Load, Top Mount Hanger

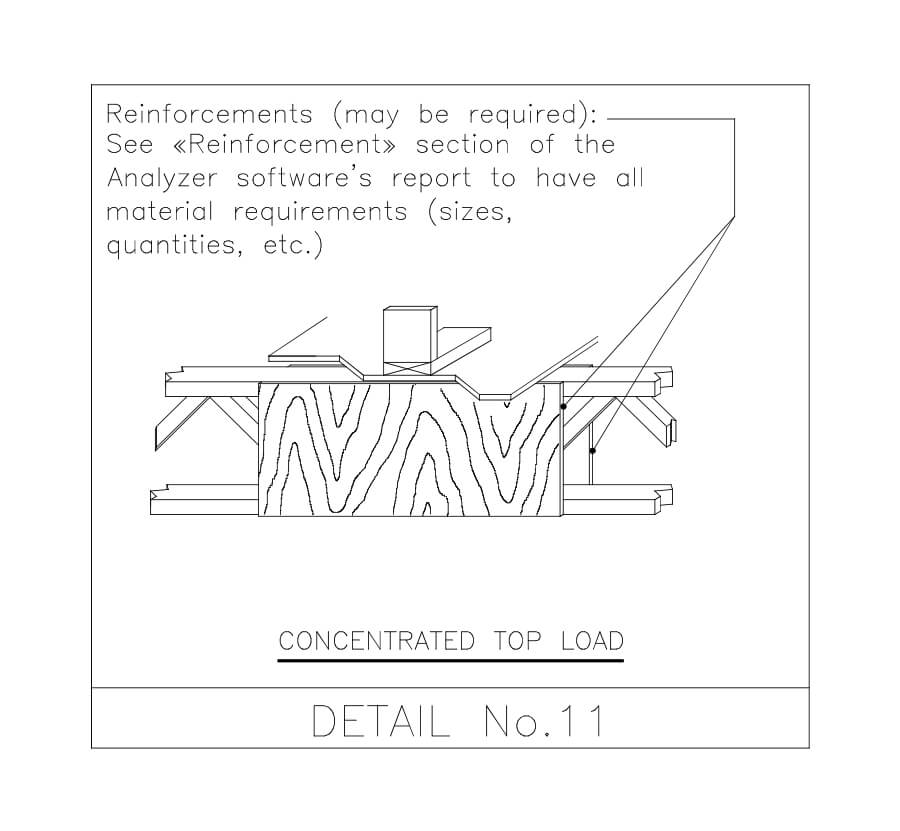

Detail No.11
– Concentrated Top Load

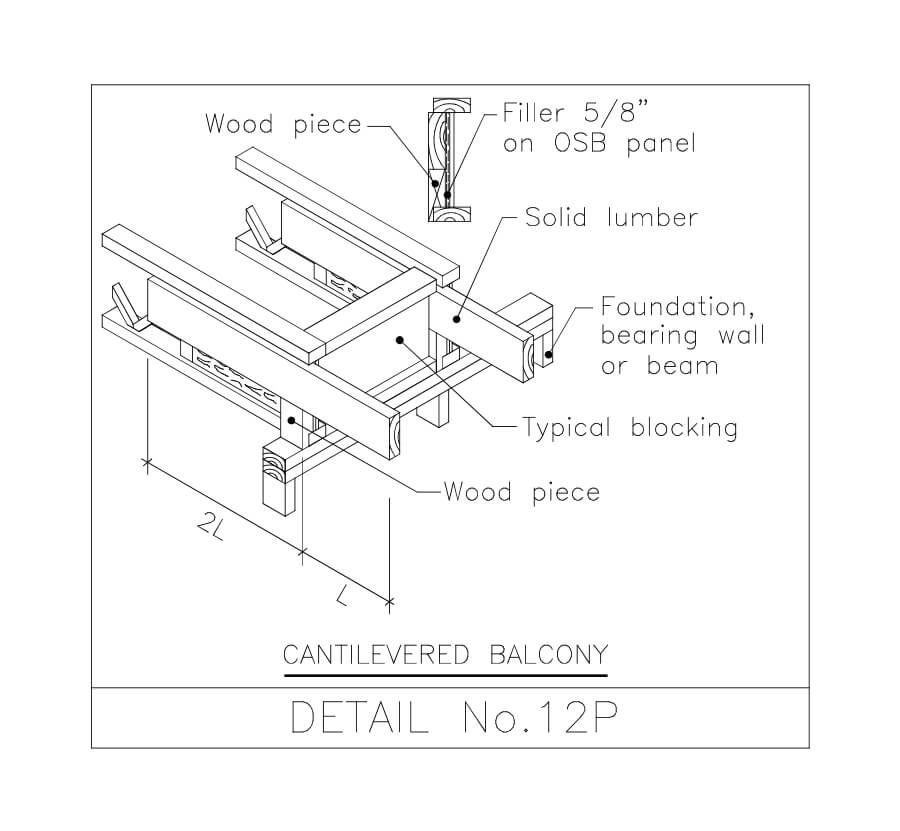

Detail No.12P
– Cantilevered Balcony

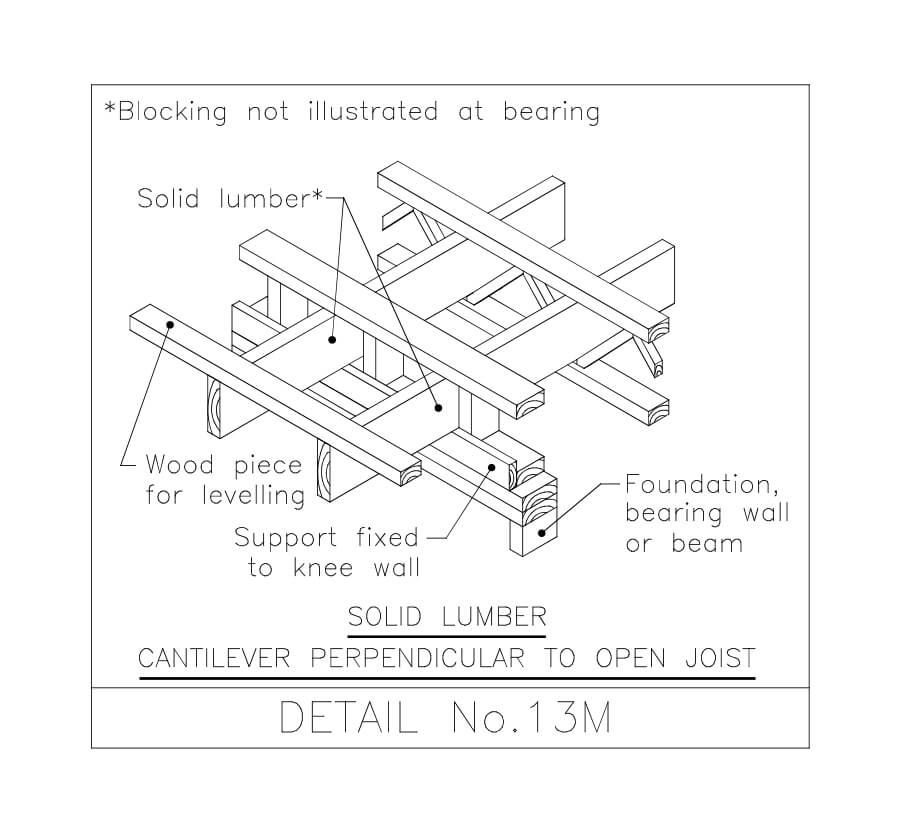

Detail No.13M
– Solid Lumber, Cantilever Perpendicular to Open Joist

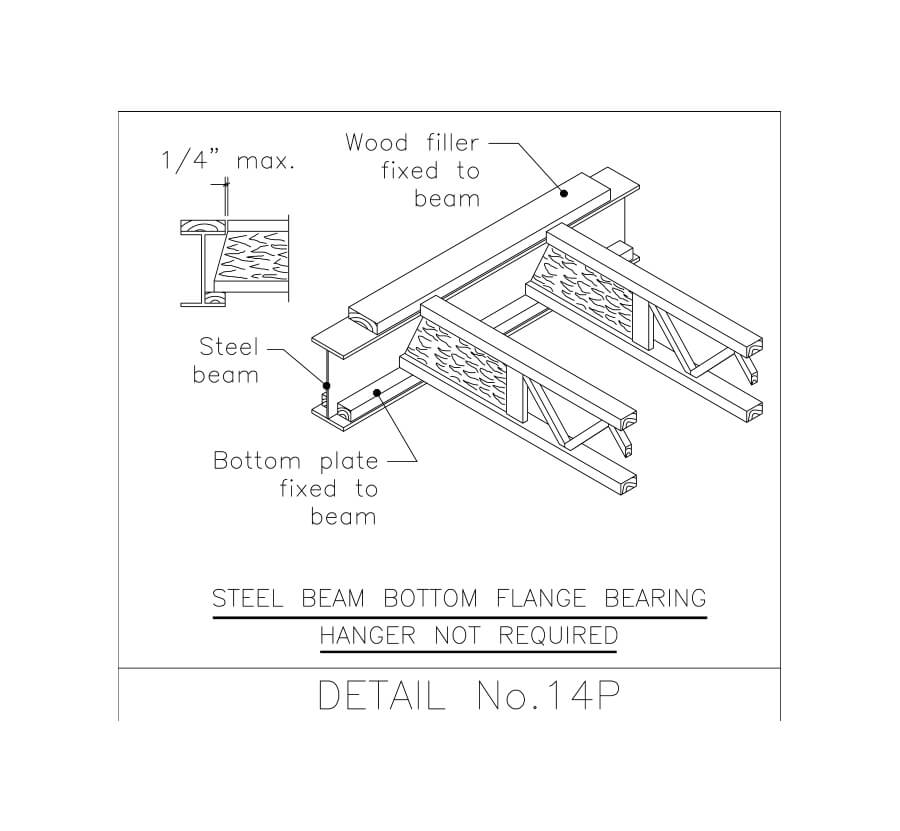

Detail No.14P
– Steel Beam Connections without Hanger

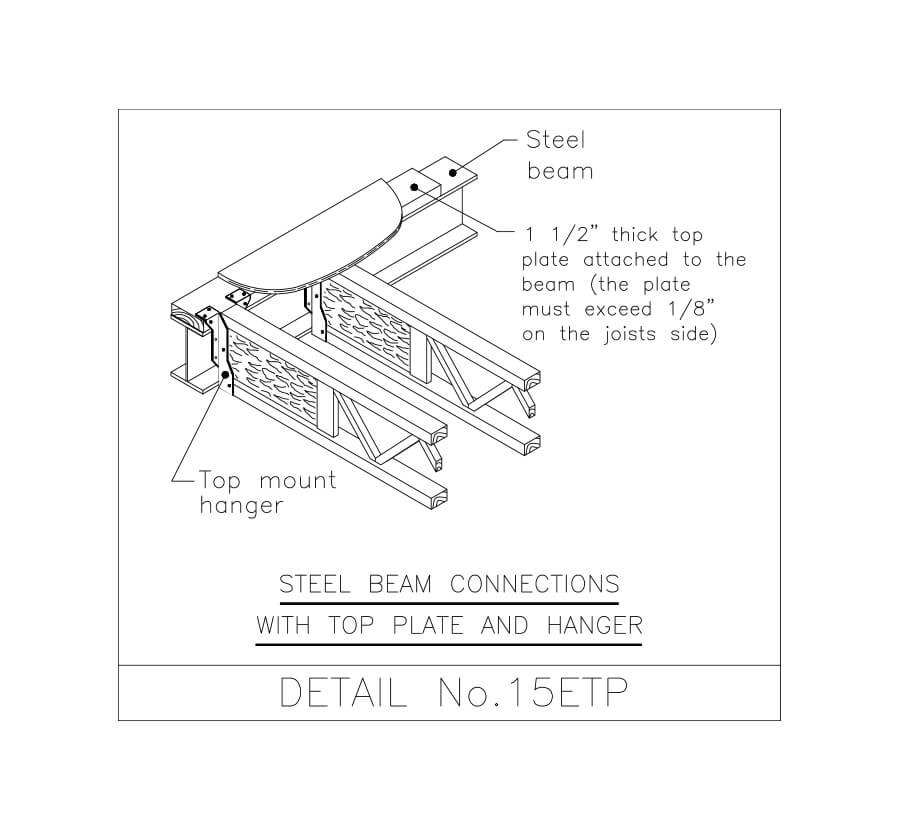

Detail No.15ETP
– Steel Beam Connections with Hanger

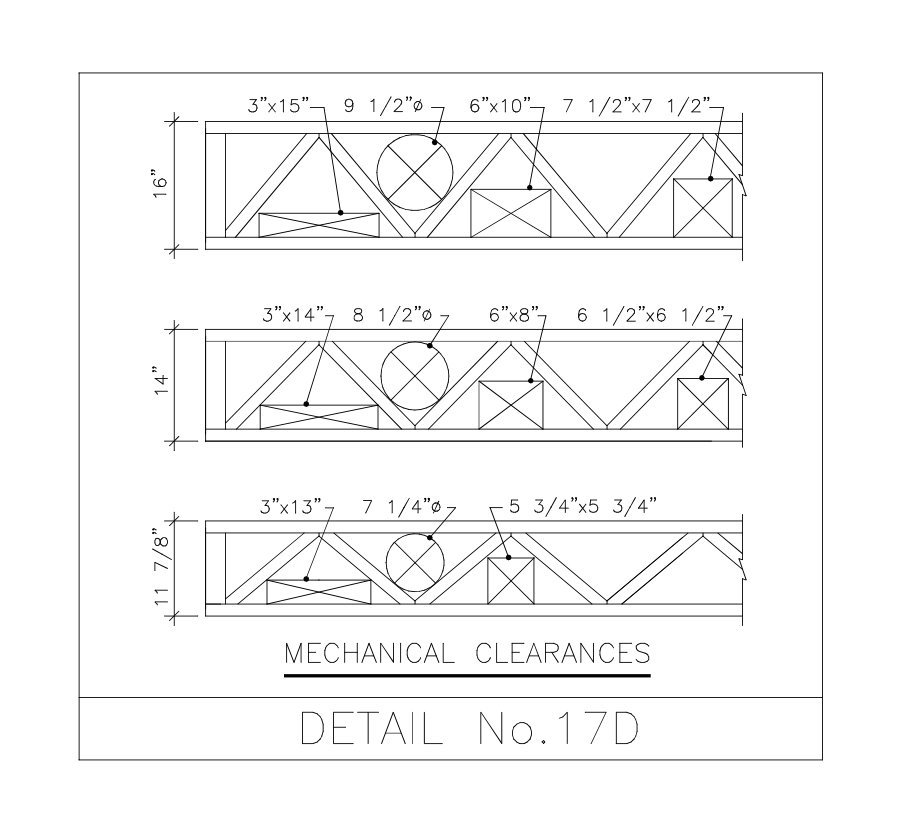

Detail No.17D
– Mechanical Clearances

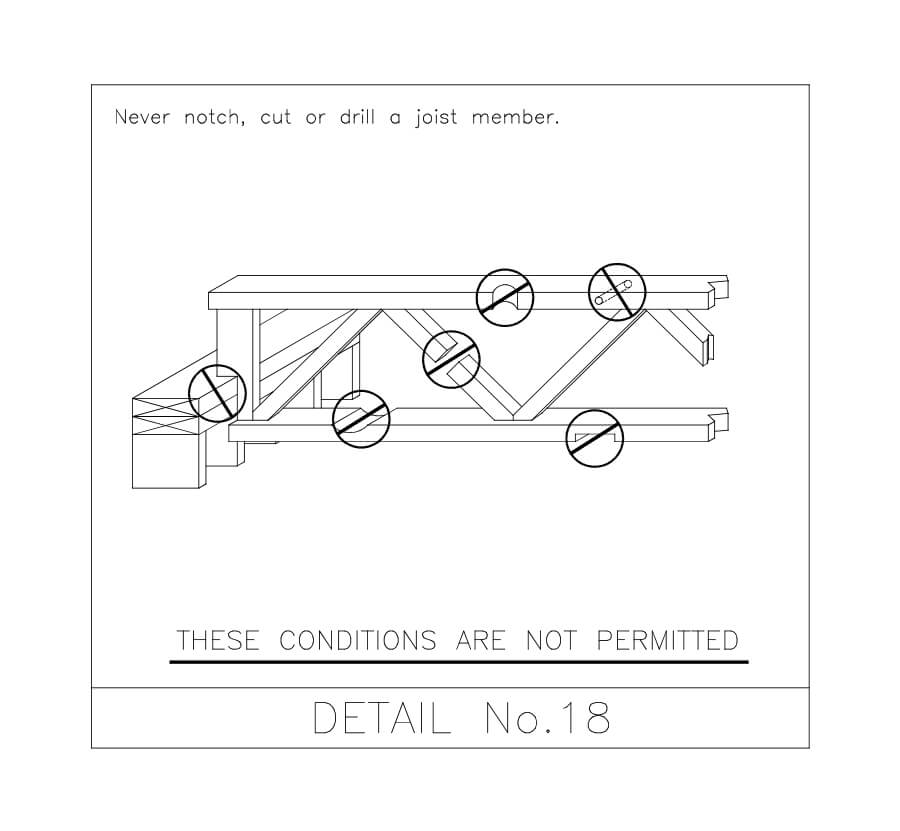

Detail No.18
– Not Permitted Conditions

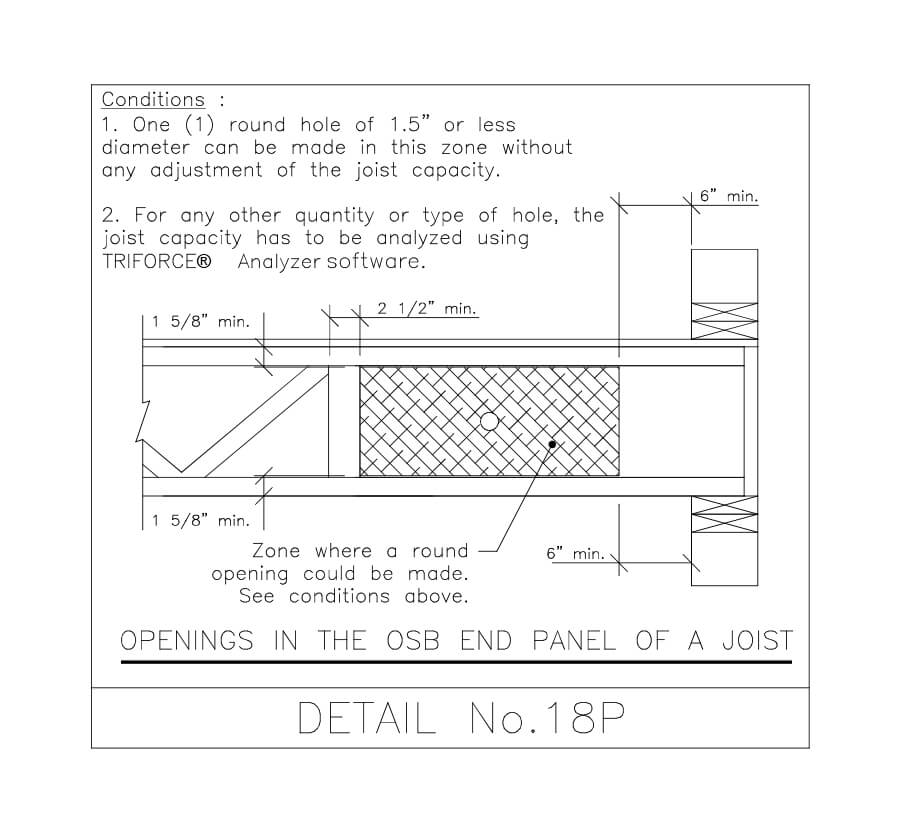

Detail No.18P
– Openings in the OSB End Panel

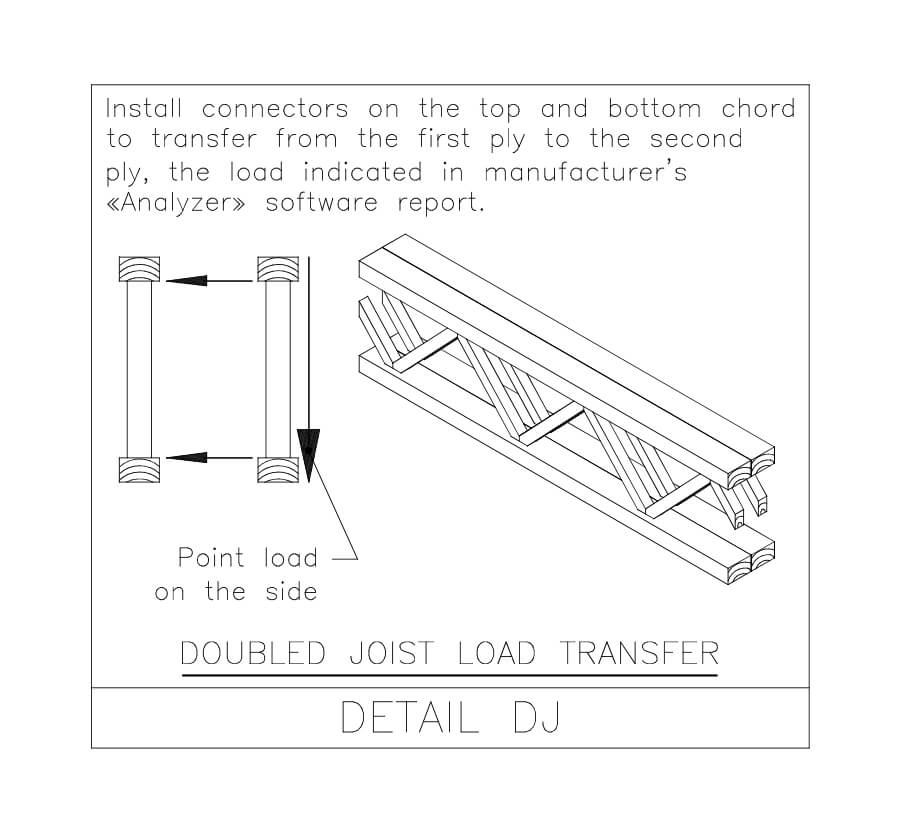

Detail DJ
– Double Joist Load Transfer

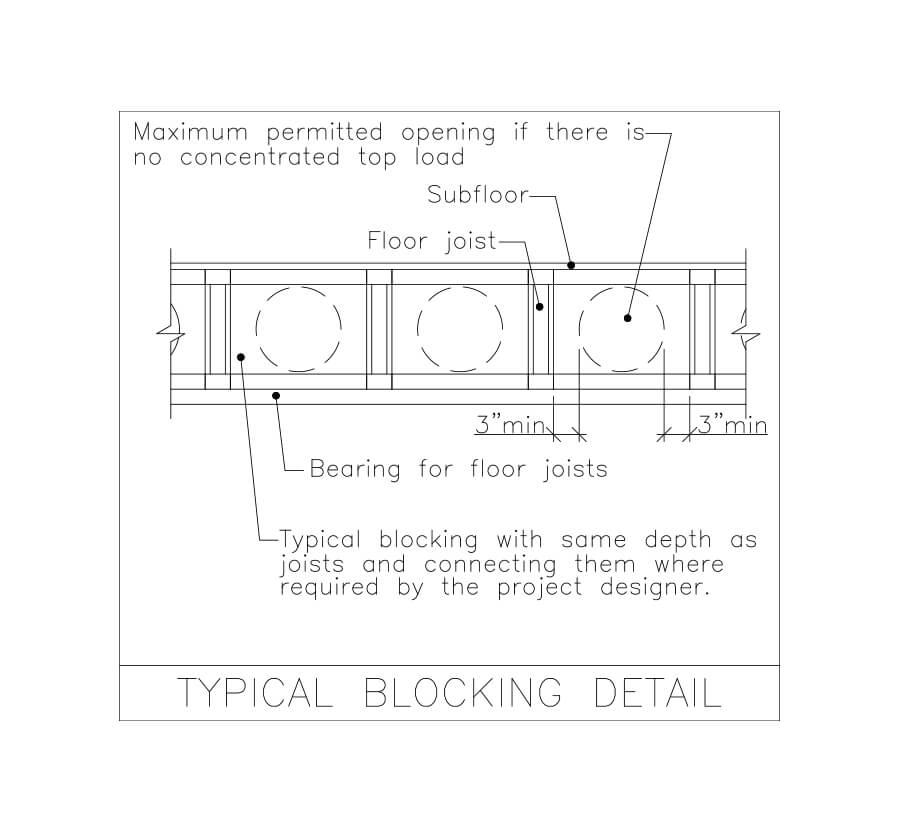

Detail TB
– Typical Blocking Detail
